| Model
|
| Orion Pro OP09TC1
| Orion Pro OP12TC1
| Orion Pro OP18TC1
| Orion Pro OP24TC1
|
| Power Supply |
F/V/Hz |
220-240V~/50Hz/1P |
220-240V~/50Hz/1P |
220-240V~/50Hz/1P |
220-240V~/50Hz/1P |
| Cooling |
Capacity |
kW |
2.6 (0.94~3.32) |
3.3 (1.0~3.80) |
5.0 (1.25-5.9) |
6.8 (1.8-7.8) |
| Cooling Power Input nom (min-max) |
kW |
0.24-0.89-1.39 |
0.29-1.09-1.50 |
 0.33-1.55-2.35 |
 0.40-2.0-2.8 |
| Cooling Current |
A |
4,7 |
5,5 |
8,2 |
9.5 (2.2~13.0) |
| EER |
|
3,24 |
3,24 |
3,24 |
|
| SEER |
|
6,1 |
6,1 |
6,1 |
6,1 |
| Energy Class |
|
A++ |
A++ |
A++ |
A++ |
| Heating |
Capacity |
kW |
2.65 (0.94-3.38) |
3.50 (1.00-3.91) |
5.10 (1.25-6.08) |
7.0 (1.8-7.9) |
| Power Pdesign (-10°C, medium climate zone) |
kW |
0.24-0.80-1.56 |
0.29-1.06-1.73 |
0.34-1.38-2.55 |
0.4-1.9-3.0 |
| Cooling Power Input nom (min-max) |
kW |
4,4 |
5,3 |
7,2 |
8.7 (2.2~14.0) |
| Cooling Current |
A |
4,4 |
5,3 |
7,2 |
8,7 |
| COP |
|
3,73 |
3,71 |
3,71 |
|
| SCOP |
|
4 |
4 |
4 |
4 |
| Energy efficiency class (medium climate zone) |
|
A+ |
A+ |
A+ |
A+ |
| Â Wi-Fi |
+/- |
+ |
+ |
+ |
+ |

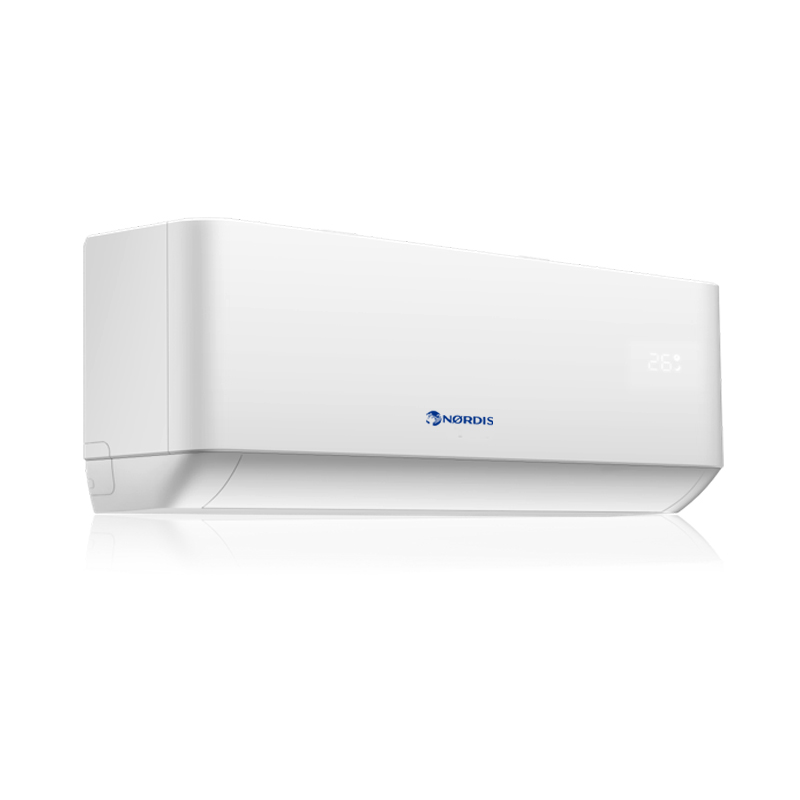

| Indoor Unit
|
|
|
|
|
|
| Dimension (WxHxD) |
mm |
790x275x192 |
|
920×306×195 |
1100×333×222 |
| Dimension of Package (LxWxH) |
mm |
860×345×265 |
860×345×265 |
990×380×265 |
1165×405×295 |
| Weight netto |
kg |
8,5 |
8,5 |
11 |
14 |
| Weight brutto |
kg |
10,5 |
10,5 |
13 |
17 |
| Air Flow Volume |
m3/h |
560/560 |
560/560 |
820/820 |
1100/1100 |
| Sound Pressure Level 1m distance |
db(A) |
|
|
|
49/43/38/35/32 |
| Sound Power |
db(A) |
52/47/43/35/32 |
52/47/43/35/32 |
54/50/47/43/36 |
58/53/49/45/42 |

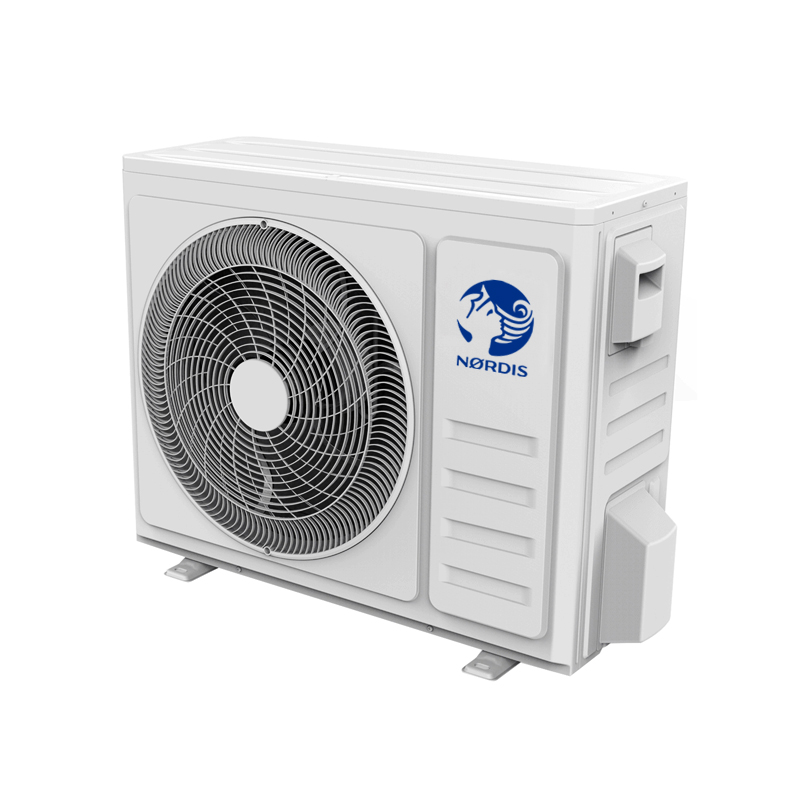

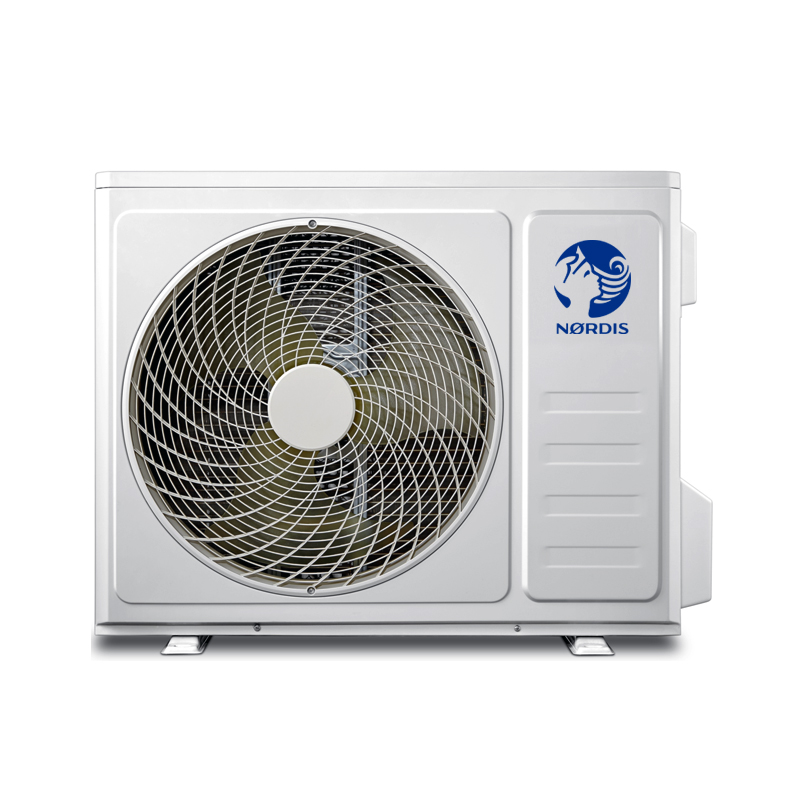

| Outdoor Unit
|
|
|
|
|
|
| Dimension (WxHxD) |
mm |
795×549×305 |
795×549×305 |
853×602×349 |
920×699×380 |
| Dimension of Package (LxWxH) |
mm |
835×340×585 |
835×340×585 |
890×628×385 |
960×732×430 |
| Weight netto |
kg |
25 |
25 |
35 |
40 |
| Weight brutto |
kg |
28(w/o pipe), 29(w/i pipe) |
28(w/o pipe), 29(w/i pipe) |
38(w/o pipe), 39(w/i pipe) |
46 |
| Air Flow Volume |
m3/h |
2200 |
2200 |
2600 |
3000 |
| Sound Pressure Level |
db(A) |
|
|
|
58 |
| Sound Power |
db(A) |
52 |
52 |
55 |
68 |
| Connection Pipe |
Refrigerant Pipe |
in/mm |
1/4”-3/8″/ (Ø6.35-Ø9.52) |
 1/4”-3/8”/ (Ø6.35-Ø9.52) |
 1/4”-3/8”/ (Ø6.35-Ø9.52) |
 1/4”-1/2”/ (Ø6.35-Ø12.7) |
| Amount of Refrigerant R32 |
kg |
0,7 |
0,7 |
1 |
1,2 |
| Additional amount of Refrigerant |
g/m |
15 |
15 |
25 |
25 |
| Track length without additional Refrigerant |
m |
5 |
5 |
5 |
5 |
| Max. Distance Length |
m |
25 |
25 |
25 |
25 |
| Max. Elevation |
m |
10 |
10 |
10 |
10 |
| Power Cable |
Power Cable |
mm2 |
3×1.5 |
3×1.5 |
3×1.5 |
3×2.5 |
| Automatic Switch |
A |
16 |
16 |
16 |
20 |
| Communication Cable |
mm2 |
4×0.75 |
4×0.75 |
4×0.75 |
4×0.75 |
| Cooling Operation Ambient Temperature Range |
°C |
-15~53 |
-15~53 |
-15~53 |
-15~53 |
| Heating Operation Ambient Temperature Range |
°C |
-25~30 |
-25~30 |
-25~30 |
-25~30 |
