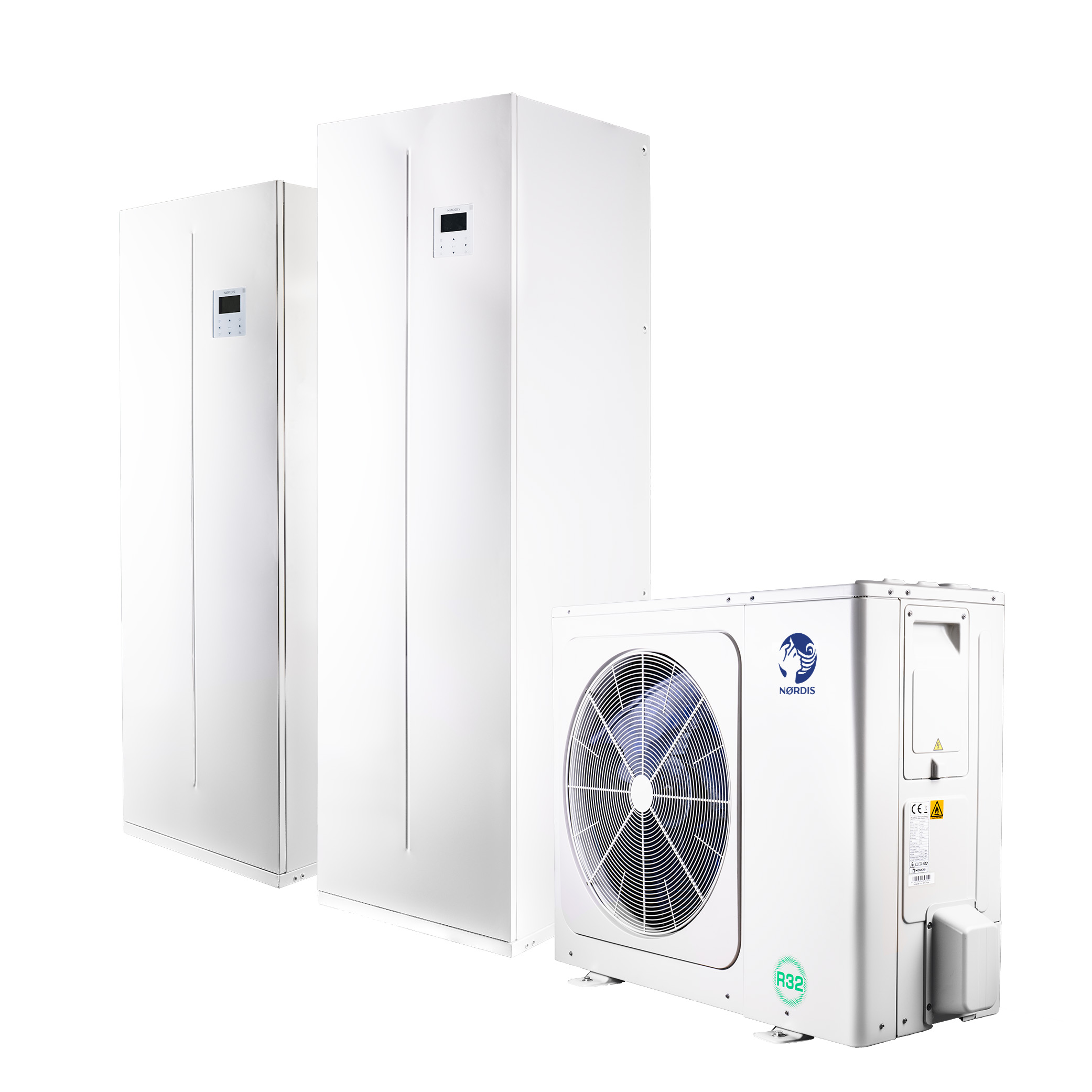

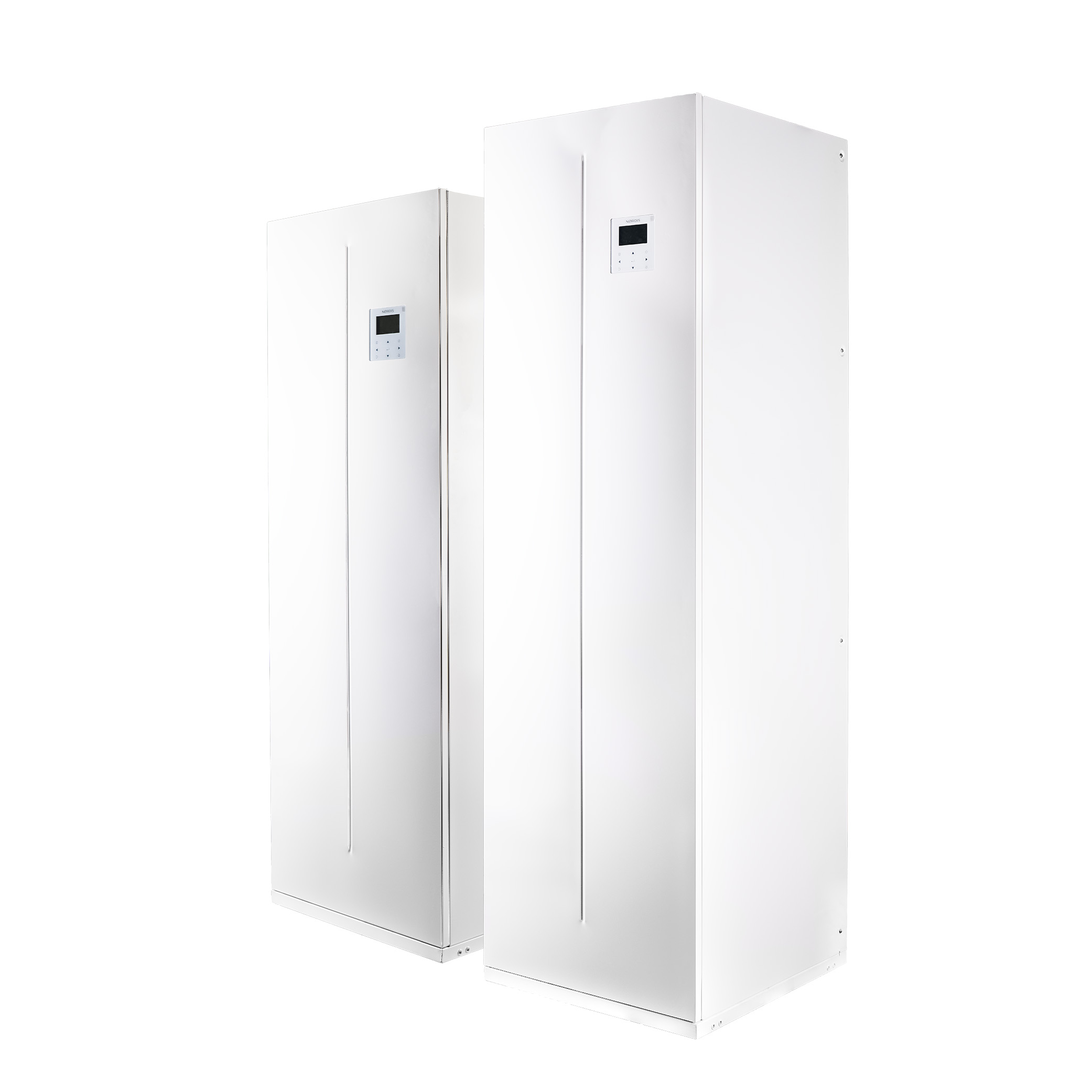

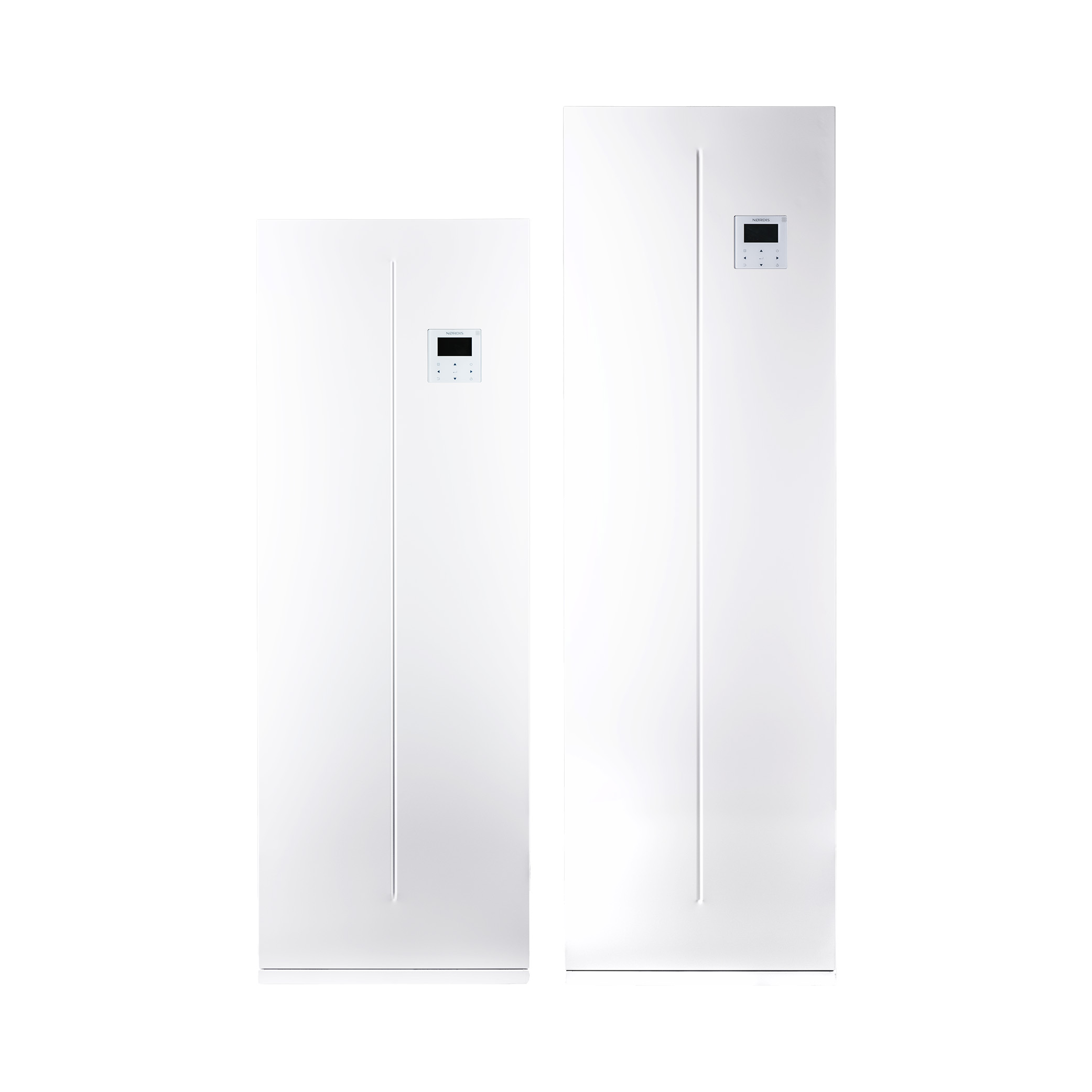

| Indoor units with DHW tank
| HOP100/190 IDU
| HOP100/190 IDU3
| HOP160/240 IDU3
|

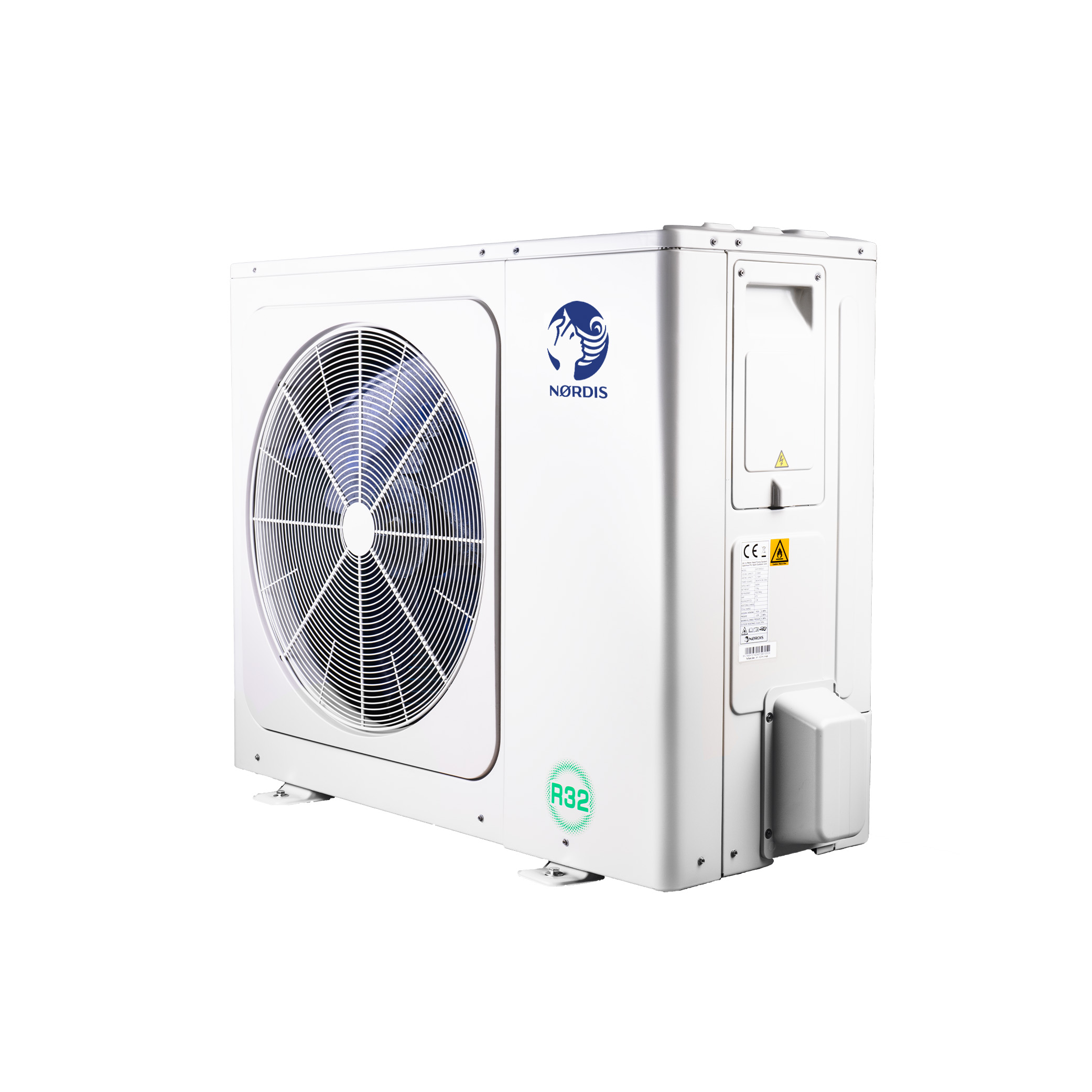

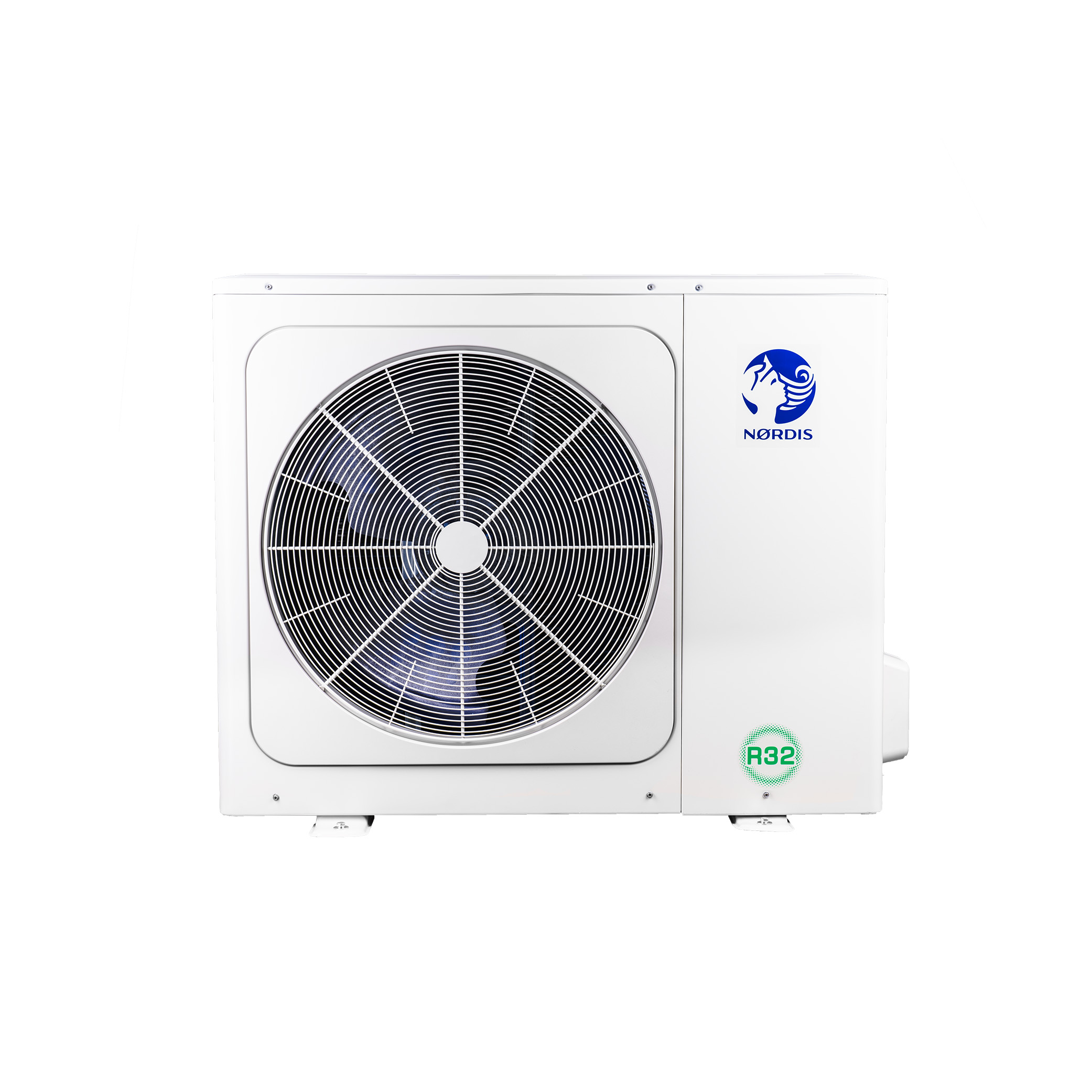

| Compatible outdoor models |
HOP6W ODU |
HOP8W ODU |
HOP10W ODU |
HOP6W ODU |
HOP8W ODU |
HOP10W ODU |
HOP12W ODU3 |
HOP16W ODU3 |
| Efficiency class for hot water production (temperate climate zone) |
class |
A+ |
| COP |
3,10 |
3,02 |
3,10 |
3,02 |
3,00 |
| Water tank capacity |
Capacity |
l |
190 |
240 |
| Material |
Stainless steel, SUS 316L |
| Max water temperature |
°C |
70 |
| Isolation |
Polyurethane |
| Built-in electric heater |
kW |
3 |
9 (3+3+3) |
| Power supply |
V/Ph/Hz |
220-240/1/50 |
380-415/3/50 |
| Rated power |
W |
3095 |
9095 |
| Rated current |
A |
13,5 |
13,5 |
| Power cable |
mm2 |
3×2,5 |
5×2,5 |
| Communication cable, AWG18 shielded |
mm2 |
2×0,75 |
| Automatic switch |
A |
C16 |
C16~3 |
| Sound power level |
dB |
38 |
40 |
38 |
40 |
44 |
| Dimension (W x H x D) |
mm |
600x1683x600 |
600x1943x600 |
| Dimension of Package (W x H x D) |
mm |
653x1900x653 |
653x2160x653 |
| Circulation Pump |
Type |
DC, electronic |
| Maximum lifting height |
m |
9 |
| Power |
W |
5~90 |
| Minimum water flow |
m3/h |
0,36 |
0,6 |
| Operating limits for water flow |
m3/h |
0,4 ~
1,25 |
0,4 ~ 2,1 |
0,4 ~
1,25 |
0,4 ~ 2,1 |
0,7 ~ 3,0 |
| Heat exchanger |
Plate, soldered |
| Expansion tank |
l |
8 |
| Refrigerant pipes |
Liquid phase |
mm (col) |
6,35 (1/4”) |
9,52 (3/8”) |
6,35 (1/4”) |
9,52 (3/8”) |
| Gas phase |
mm (col) |
15,88 (5/8”) |
| Water pipe connection |
Heating/cooling |
R1” |
| Hot water preparation |
R3/4” |
| Net / Gross weight |
kg |
139 / 154 |
159 / 180 |
| Supply water temperature |
Heating |
°C |
+12 ~ +65 |
| Cooling |
°C |
+5 ~ +30 |
| DHW |
°C |
+12 ~ +60 |
| Ambient temperature |
°C |
+5 ~ +35 |
| Water pressure in the heating/cooling system |
bar |
1 ~ 2,5 |
| Water pressure in the hot water system (cold water) |
bar |
1,5 ~ 3 |
