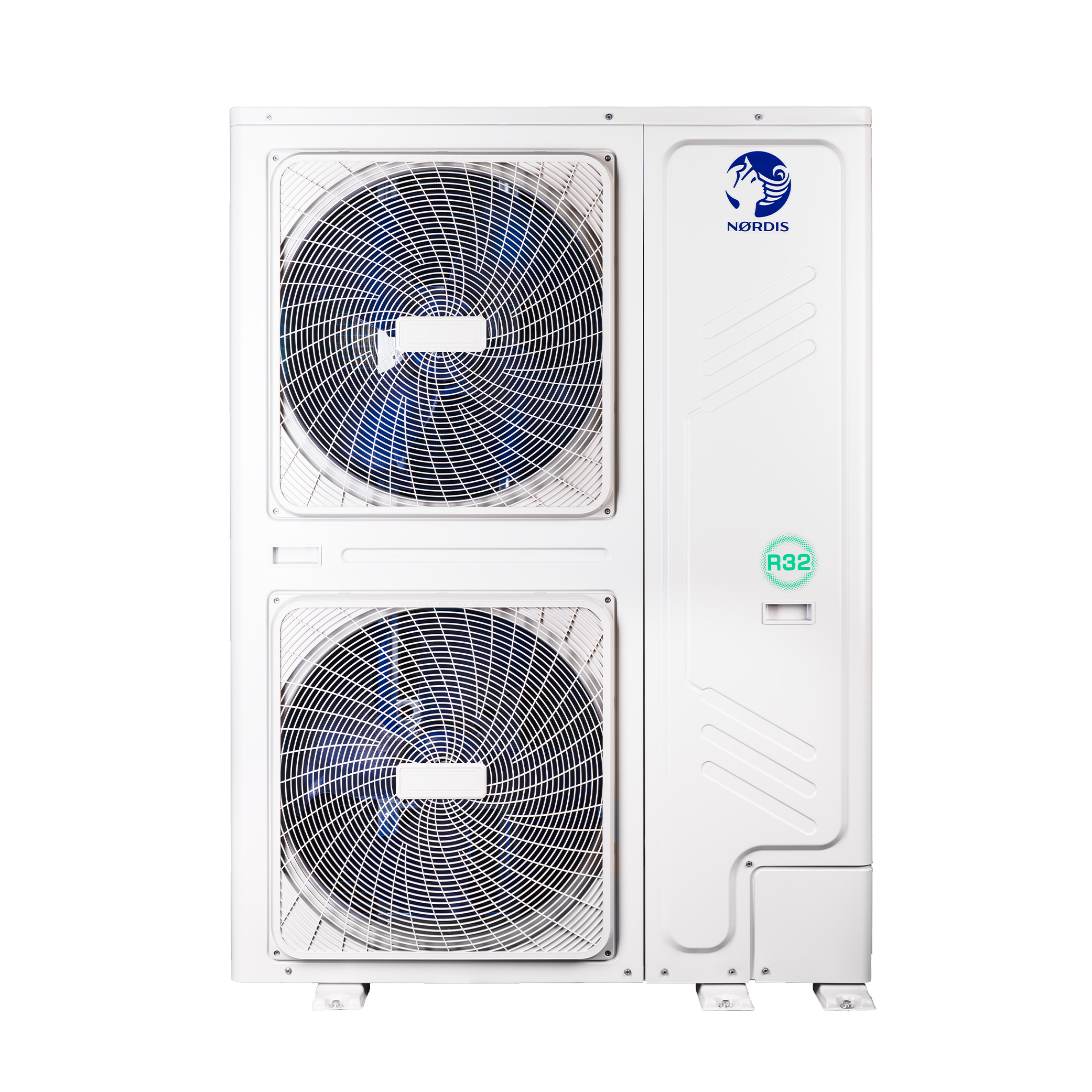

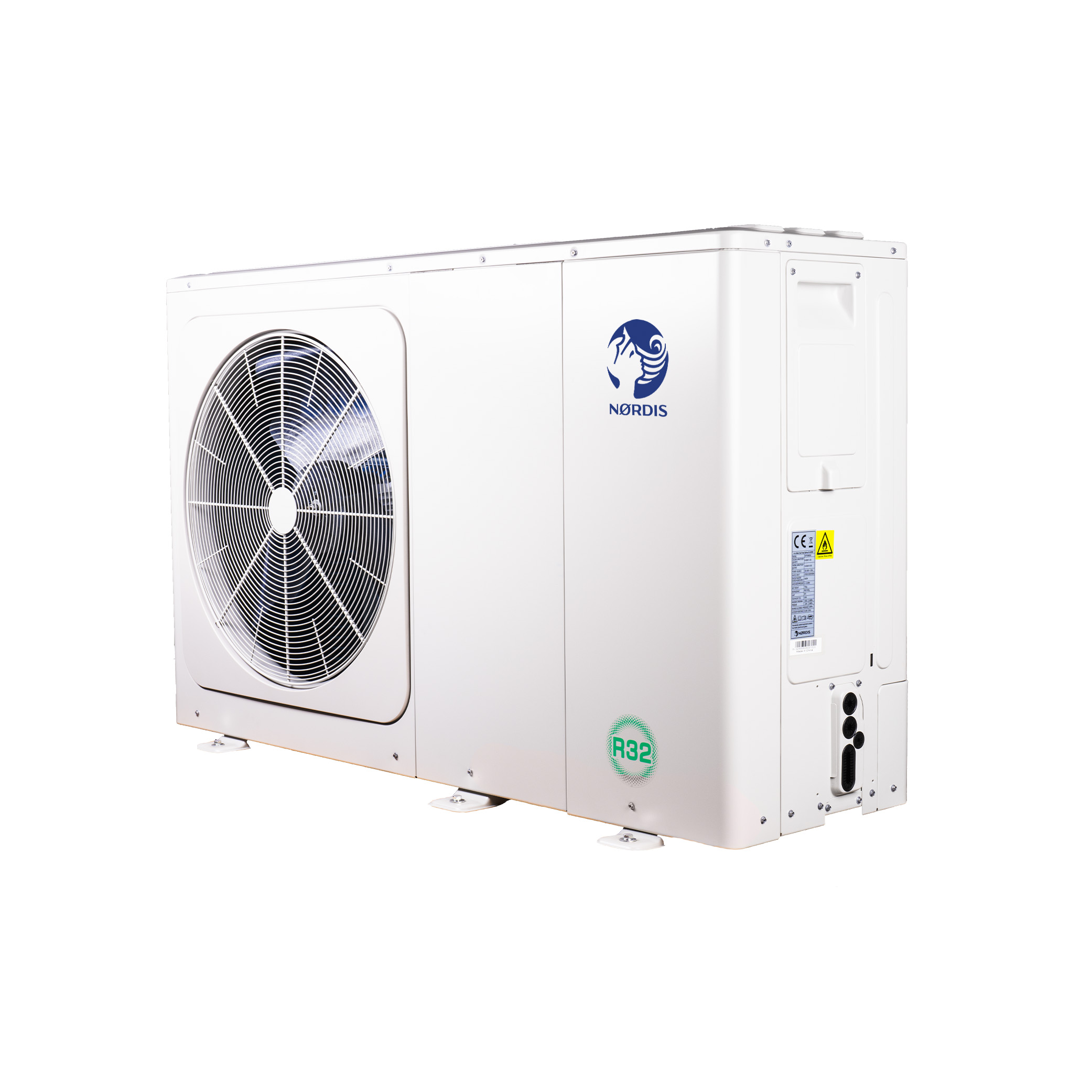

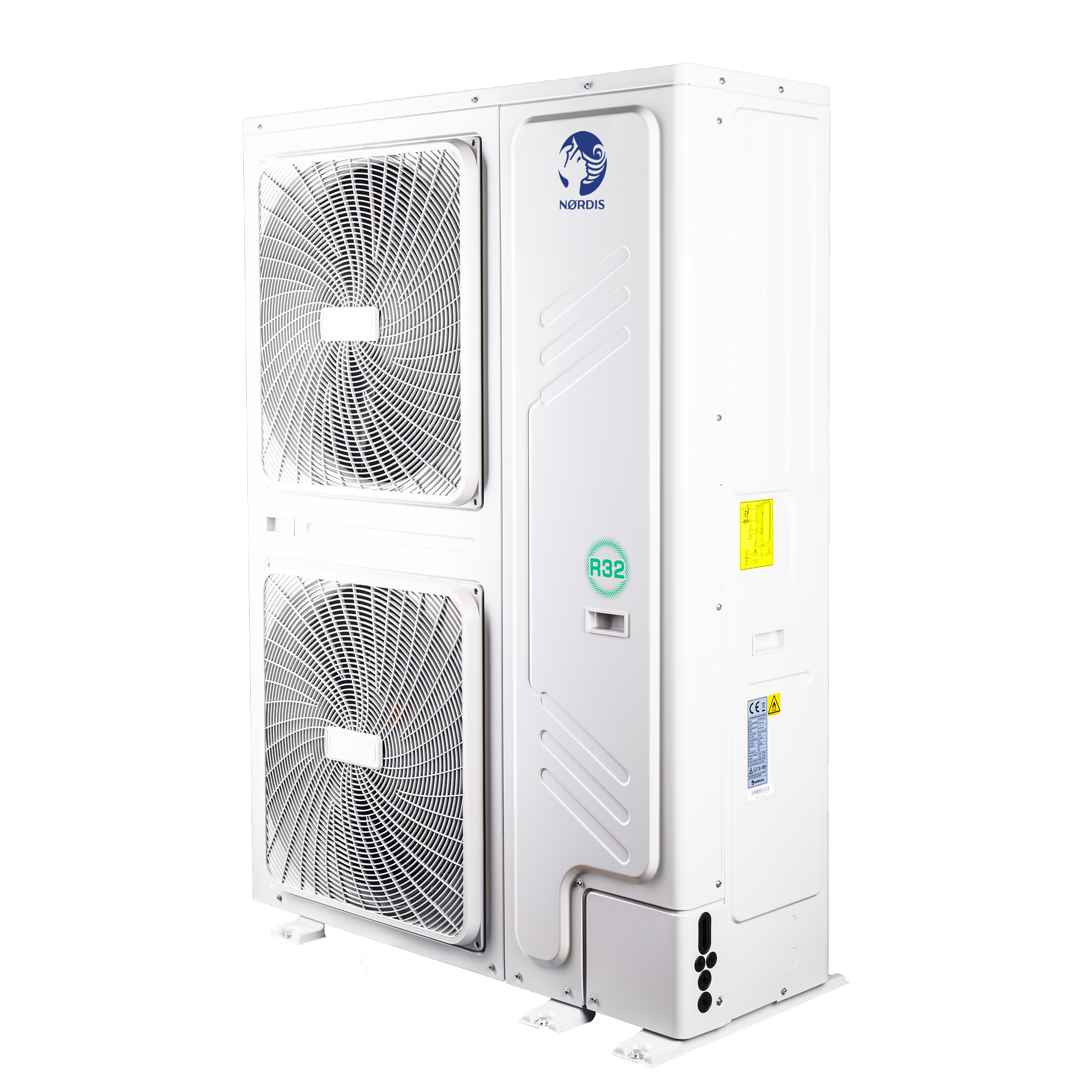

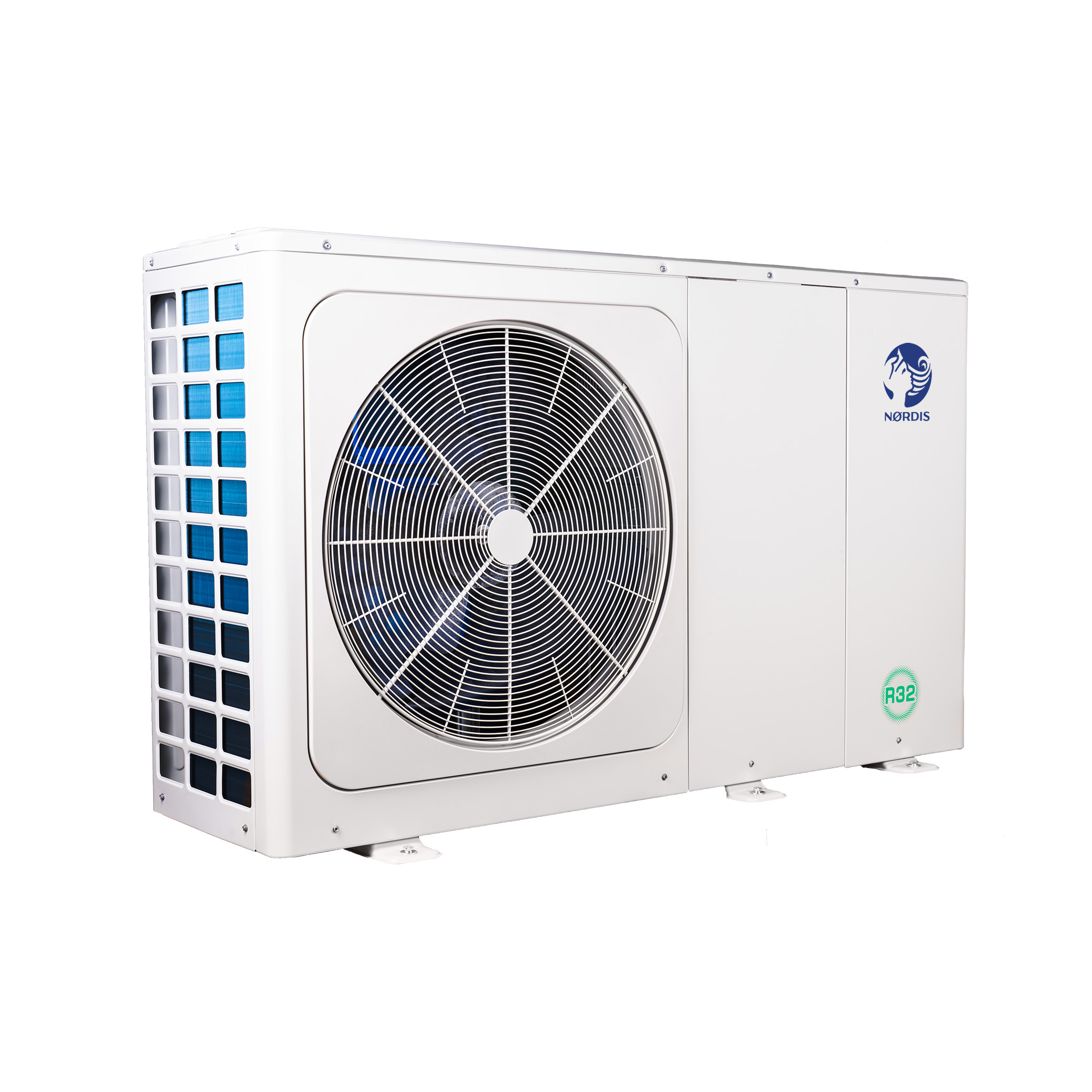

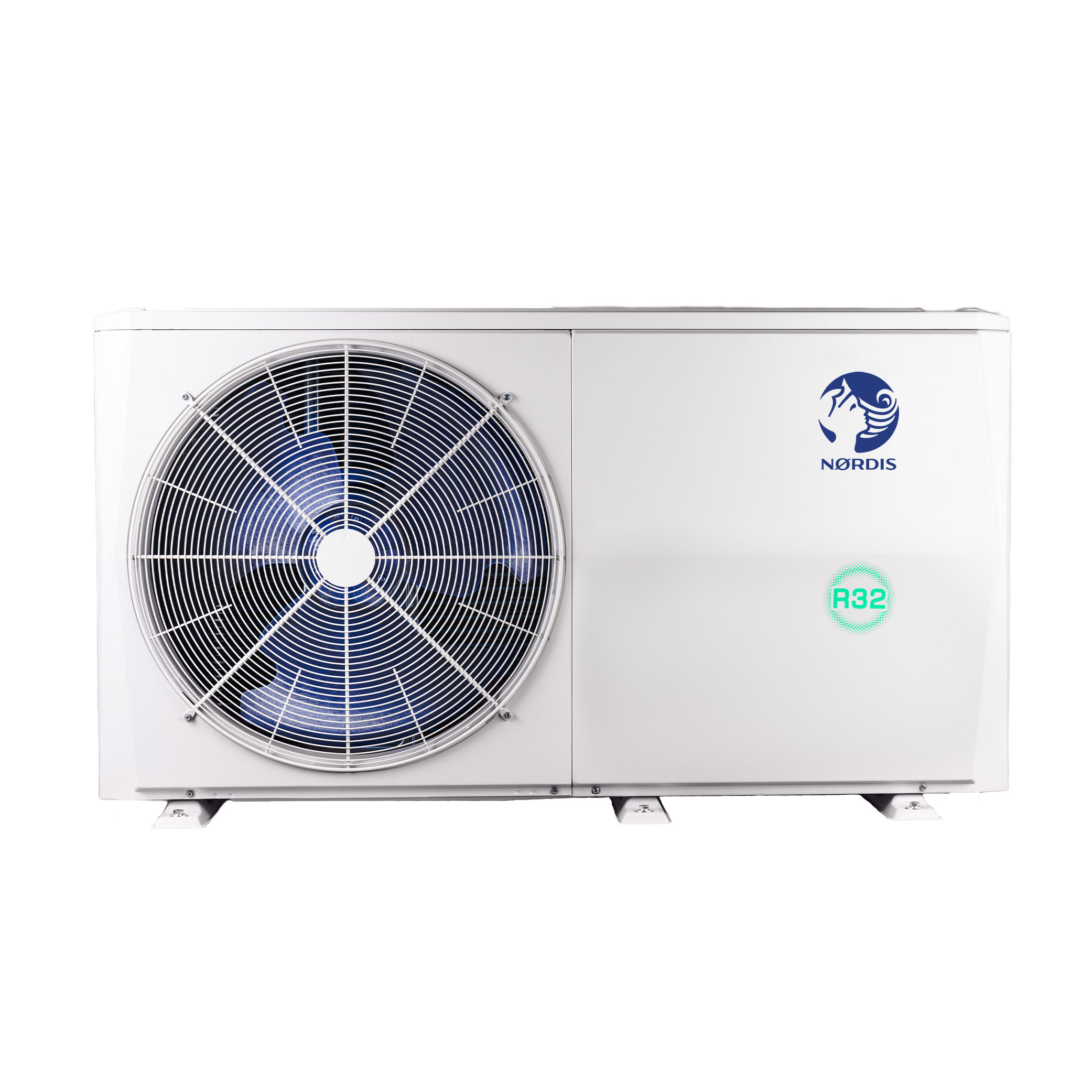

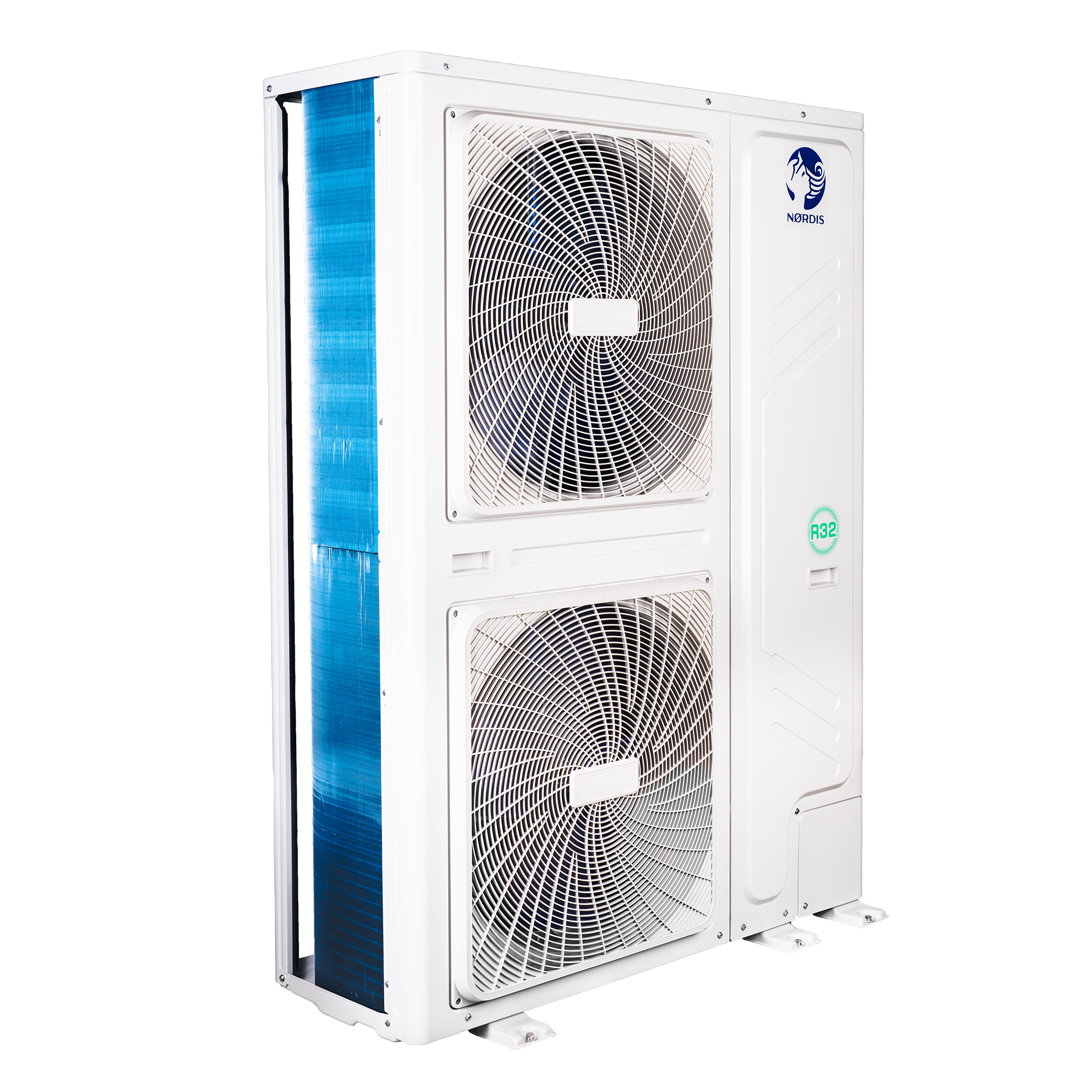

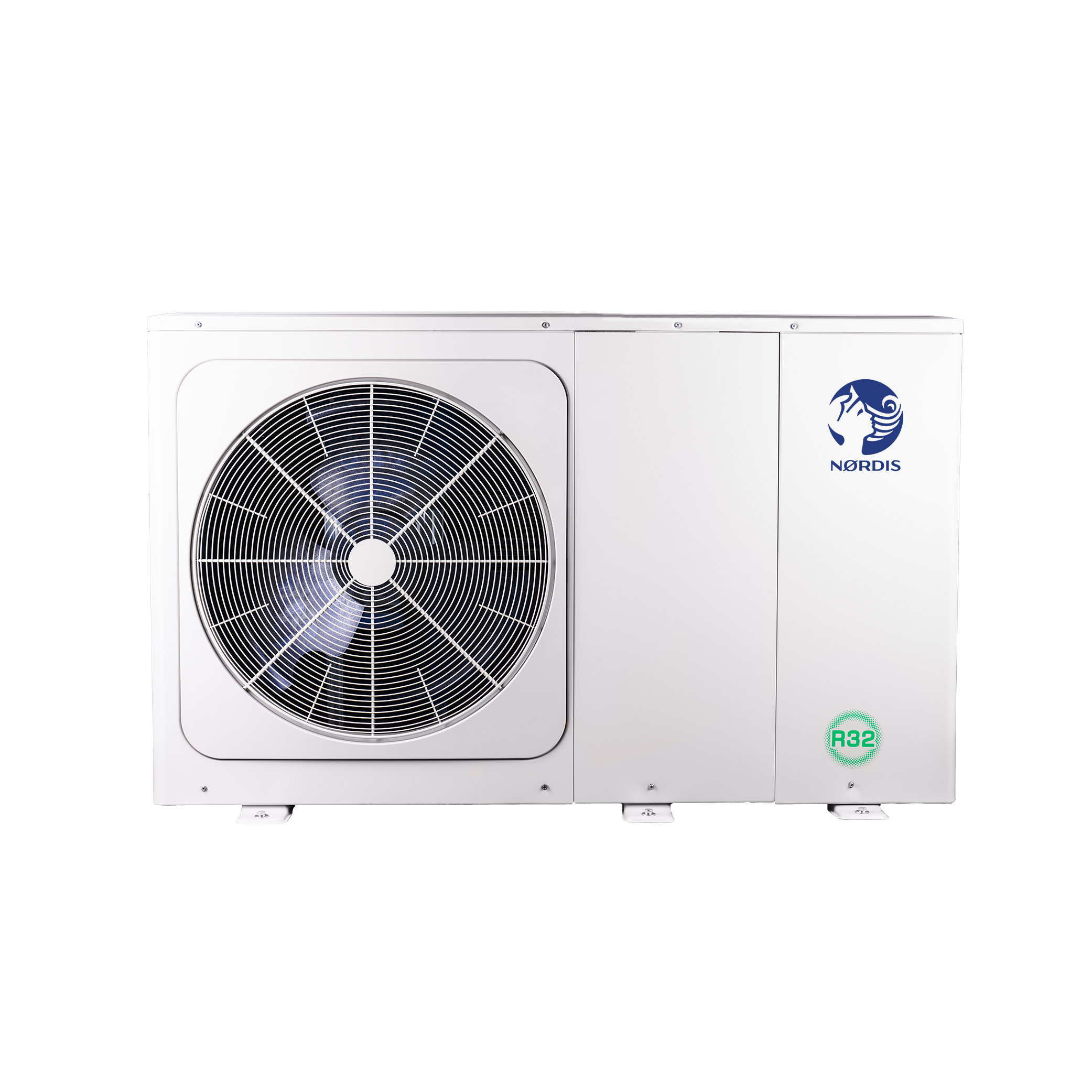

NORDIS Optimus Pro Mono

Your Basket ()

Add to Wishlist

Estimated Delivery: Within 5-7 days
Free shipping: On orders over $1499 and above

Category: Heating Pumps

Online payment option

Description

Description

Product details

MONO

MONO3

MONO

Outdoor unit model			HOP4W MONO	HOP6W MONO	HOP8W MONO	HOP10W MONO	HOP12W MONO	HOP14W MONO	HOP16W MONO
Built-in electric heater		kW	3
Power supply		V/Ph/Hz	220-240/1/50
Rated power		W	5300	5700	6400	6700	8500	8800	9200
Rated current		A	25	27	29	30	38	39	40
Power cable		mm²	3×4,0		3×6,0		3×10,0
Communication cable, AWG18 shielded		mm²	5×0,75
Automatic switch		A	C32				C40
Heating A7W35	Capacity	kW	4,20	6,35	8,40	10,00	12,10	14,50	15,90
	Rated input	kW	0,82	1,28	1,63	2,02	2,44	3,15	3,53
	COP		5,10	4,95	5,15	4,95	4,95	4,60	4,50
Heating A7W45	Capacity	kW	4,30	6,30	8,10	10,00	12,30	14,10	16,00
	Rated input	kW	1,13	1,70	2,10	2,67	3,32	3,92	4,57
	COP		3,80	3,70	3,85	3,75	3,70	3,60	3,50
Heating A7W55	Capacity	kW	4,40	6,00	7,50	9,50	11,90	13,80	16,00
	Rated input	kW	1,49	2,03	2,36	3,06	3,90	4,68	5,61
	COP		2,95	2,95	3,18	3,10	3,05	2,95	2,85
Heating A-7W35	Capacity	kW	4,70	6,00	7,00	8,00	10,00	12,00	13,10
	Rated input	kW	1,52	2,00	2,19	2,62	3,33	4,21	4,85
	COP		3,10	3,00	3,20	3,05	3,00	2,85	2,70
Cooling A35W18	Capacity	kW	4,50	6,50	8,30	9,90	12,00	13,50	14,90
	Rated input	kW	0,82	1,35	1,64	2,18	3,04	3,75	4,38
	EER		5,50	4,80	5,05	4,55	3,95	3,60	3,40
Cooling A35W7	Capacity	kW	4,70	7,00	7,45	8,20	11,50	12,40	14,00
	Rated input	kW	1,36	2,33	2,22	2,52	4,18	4,96	5,60
	EER		3,45	3,00	3,35	3,25	2,75	2,50	2,50
Seasonal space heating energy efficiency class	Water outlet at 35°C	class	A+++
Seasonal space heating energy efficiency class	Water outlet at 55°C	class	A++
SCOP		35°C	4,85	4,95	5,22	5,2	4,81	4,72	4,62
SCOP		55°C	3,31	3,52	3,37	3,47	3,45	3,47	3,41
Refrigerant	Type (GWP)		R32 (675)
Refrigerant	Charged volume	kg	1,4				1,75
Compressor			DC two rotor inverter
Heat exchanger			Plate, soldered
Fan			DC electric motor
Number of fans			1
Circulation pump	Type		DC, electronic
	Max. lifting height	m	9
	Capacity	W	5~90
Nominal water flow		m³/h	0,72	1,09	1,44	1,72	2,08	2,49	2,73
Operating limits for water flow		m³/h	0,4 ~ 0,9	0,4 ~ 1,25	0,4 ~ 1,65	0,4 ~ 2,1	0,7 ~ 2,5	0,7 ~ 2,75	0,7 ~ 3,0
Water piping connection			R1”		R1 1/4”
Sound power Level		dB(A)	55	58	59	60	65	65	68
Dimension (W×H×D)		mm	1295x792x429		1385x945x526
Packing dimension (W×H×D)		mm	1375x965x475		1465x1120x560
Net / Gross weight		kg	103/ 126		126 / 153		149 / 175
Ambient temperature range	Heating	°C	-25 ~ +35
	Cooling	°C	-5 ~ +43
	DHW	°C	-25 ~ +43
LWT setting range	Heating	°C	+25 ~ +65
	Cooling	°C	+5 ~ +25
	DHW	°C	+30 ~ +60

MONO3

Outdoor unit model			HOP12W MONO3	HOP14W MONO3	HOP16W MONO3	HOP18W MONO3	HOP22W MONO3	HOP26W MONO3	HOP30W MONO3
Power supply		V/Ph/Hz	380-415/3/50
Heating A7W35	Capacity	kW	12,10	14,50	15,90	18,00	22,00	26,00	30,10
	Rated input	kW	2,44	3,15	3,53	3,83	5,00	6,37	7,70
	COP		4,95	4,60	4,50	4,70	4,40	4,08	3,91
Heating A7W45	Capacity	kW	12,30	14,10	16,00	18,00	22,00	26,00	30,00
	Rated input	kW	3,32	3,92	4,57	5,14	6,47	8,39	10,35
	COP		3,70	3,60	3,50	3,50	3,40	3,10	2,90
Heating A7W55	Capacity	kW	11,90	13,80	16,00	18,00	22,00	26,00	30,00
	Rated input	kW	3,90	4,68	5,61	6,55	8,30	10,61	13,04
	COP		3,05	2,95	2,85	2,75	2,65	2,45	2,30
Heating A-7W35	Capacity	kW	10,00	12,00	13,10	18,00	21,00	22,00	23,00
	Rated input	kW	3,33	4,21	4,85	6,67	8,08	8,80	9,39
	COP		3,00	2,85	2,70	2,70	2,60	2,50	2,45
Cooling A35W18	Capacity	kW	12,00	13,50	14,90	18,50	23,00	27,00	31,00
	Rated input	kW	3,04	3,75	4,38	3,90	5,00	6,30	7,75
	EER		3,95	3,60	3,40	4,75	4,60	4,30	4,00
Cooling A35W7	Capacity	kW	11,50	12,40	14,00	17,00	21,00	26,00	29,50
	Rated input	kW	4,18	4,96	5,60	5,57	7,12	9,63	11,57
	EER		2,75	2,50	2,50	3,05	2,95	2,70	2,55
Seasonal space heating energy efficiency class	Water outlet at 35°C	class	A+++
Seasonal space heating energy efficiency class	Water outlet at 55°C	class	A++
SCOP		35°C	4,81	4,72	4,62	4,6	4,53	4,5	4,2
SCOP		55°C	3,45	3,47	3,41	3,2	3,23	3,15	3,15
SEER		7°C				4,7	4,7	4,66	4,49
SEER		18°C				5,48	5,67	5,88	5,71
Refrigerant	Type (GWP)		R32 (675)
Refrigerant	Charged volume	kg	1,75			5,00
Compressor			DC two rotor inverter
Heat exchanger			Plate, soldered
Fan			DC electric motor
Number of fans			1			2
Circulation pump	Type		DC, electronic
	Max. lifting height	m	9			12
	Capacity	W	5 ~ 90			10 ~ 305
Nominal water flow		m³/h	2,08	2,49	2,73	3,1	3,78	4,47	5,18
Operating limits for water flow		m³/h	0,7 ~ 2,5	0,7 ~ 2,75	0,7 ~ 3,0
Water piping connection			R1 1/4”
Sound power Level		dB	65	65	68	71	73	75	77
Dimension (W×H×D)		mm	1385x945x526			1129x1558x440
Packing dimension (W×H×D)		mm	1465x1120x560			1220x1735x565
Net / Gross weight		kg	160 / 188			177 / 206
Ambient temperature range	Heating	°C	-25 ~ +35
	Cooling	°C	-5 ~ +43
	DHW	°C	-25 ~ +43
LWT setting range	Heating	°C	+25 ~ +65
	Cooling	°C	+5 ~ +25
	DHW	°C	+30 ~ +60
