| Model |
|
Altair PLA09TC1 |
Altair PLA12TC1 |
Altair PLA18TC1 |
Altair PLA24TC1 |
| Power Supply |
F/V/Hz |
220-240V~/50Hz/1P |
220-240V~/50Hz/1P |
220-240V~/50Hz/1P |
220-240V~/50Hz/1P |
| Cooling |
Capacity |
kW |
2.63 (0.94~3.40) |
3.40 (1.00~3.77) |
5.10 (1.25-5.91) |
6.81 (1.83~7.80) |
| Cooling Power Input nom (min-max) |
kW |
0.80 (0.24～1.38) |
1.13(0.29～1.50) |
1.58 (0.33-2.34) |
2.25 (0.41~2.82) |
| Cooling Current |
A |
4.6 (1.2~8.0) |
5.8 (1.5～9.0) |
8.1 (1.7~12.0) |
10.7 (2.3~12.3) |
| SEER |
|
6,1 |
6,1 |
6,1 |
6,1 |
| Energy Class |
|
A++ |
A++ |
A++ |
A++ |
| Heating |
Capacity |
kW |
2.75 (0.94~3.5) |
3.42 (1.00~3.81) |
5.10 (1.25-6.07) |
6.87 (1.85~7.90) |
| Power Pdesign (-10°C, medium climate zone) |
kW |
2,4 |
2,4 |
3,8 |
4,8 |
| Cooling Power Input nom (min-max) |
kW |
0.73 (0.24～1.55) |
0.92 (0.29～1.72) |
1.37 (0.34-2.52) |
2.06 (0.42~3.00) |
| Cooling Current |
A |
4.1 (1.2~9.0) |
4.7 (1.5～10.0) |
7.0 (1.7~13.0) |
9.9 (2.3~13.5) |
| SCOP |
|
4,0 |
4,0 |
4,0 |
4,0 |
| Energy efficiency class (medium climate zone) |
|
A+ |
A+ |
A+ |
A+ |
| Â Wi-Fi |
+/- |
+ |
+ |
+ |
+ |

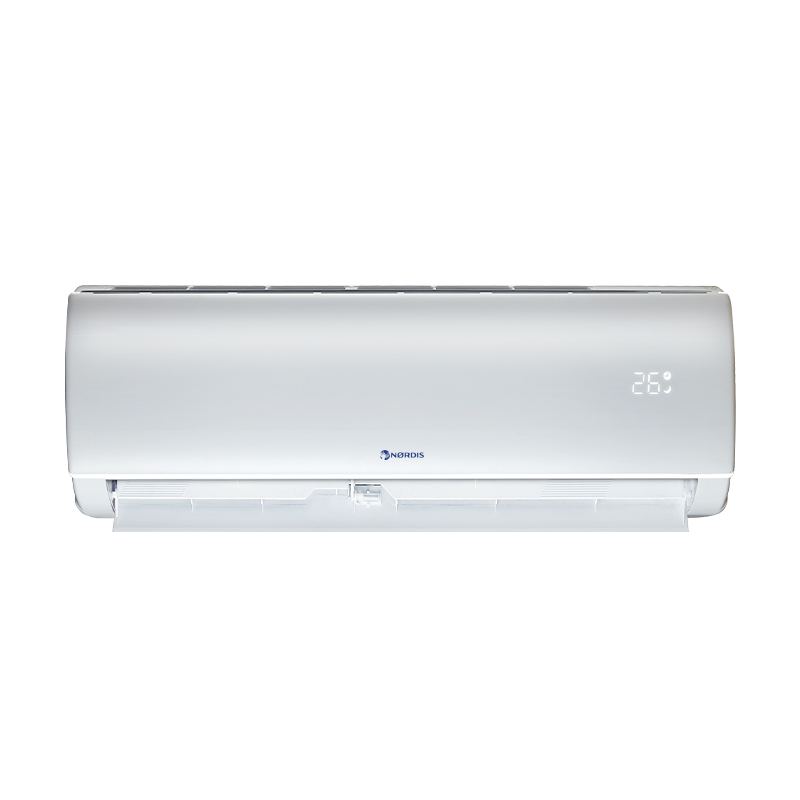

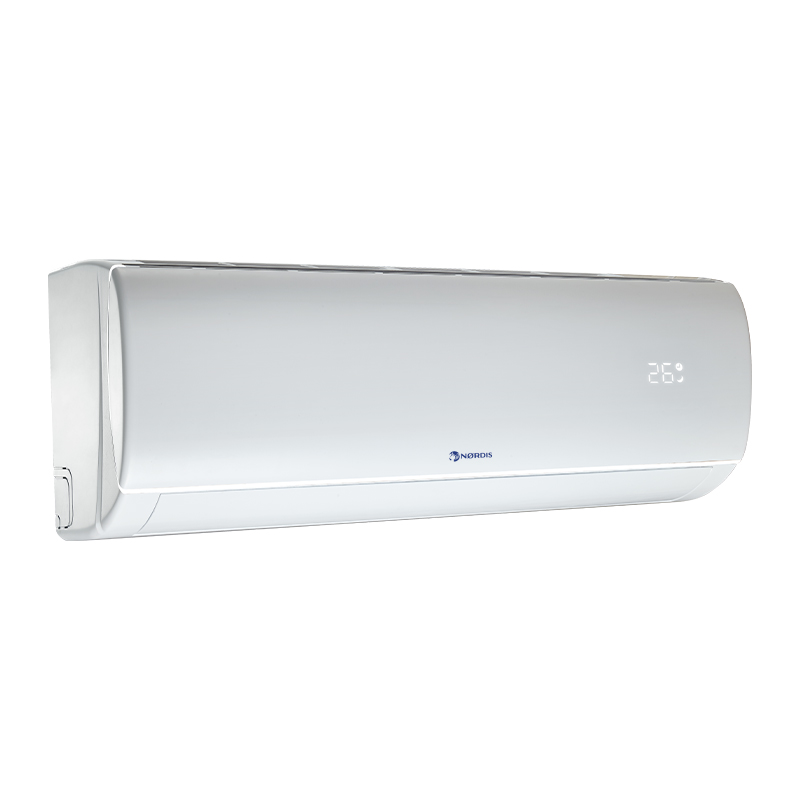

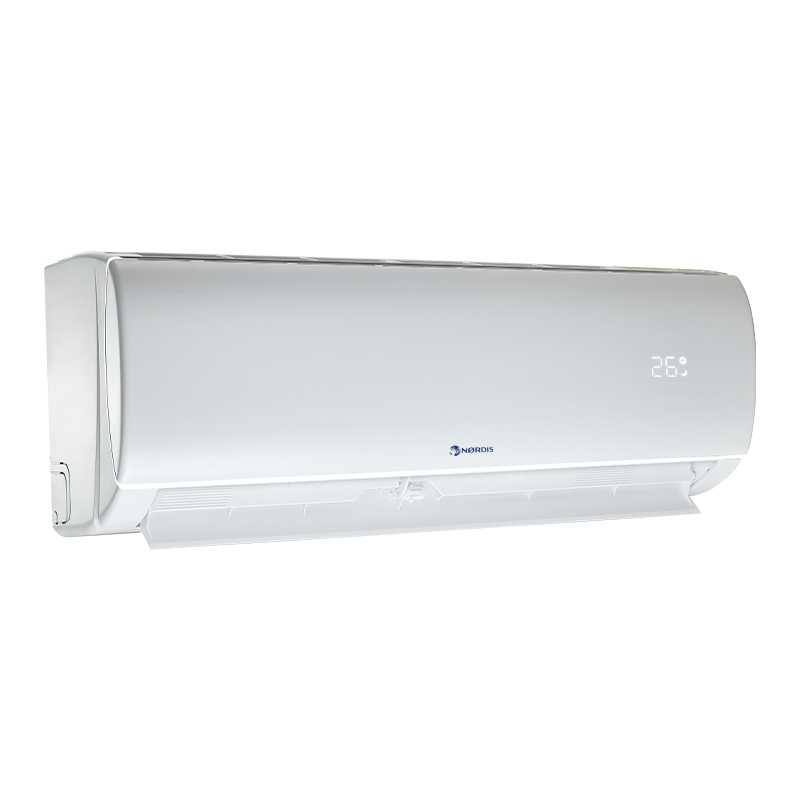

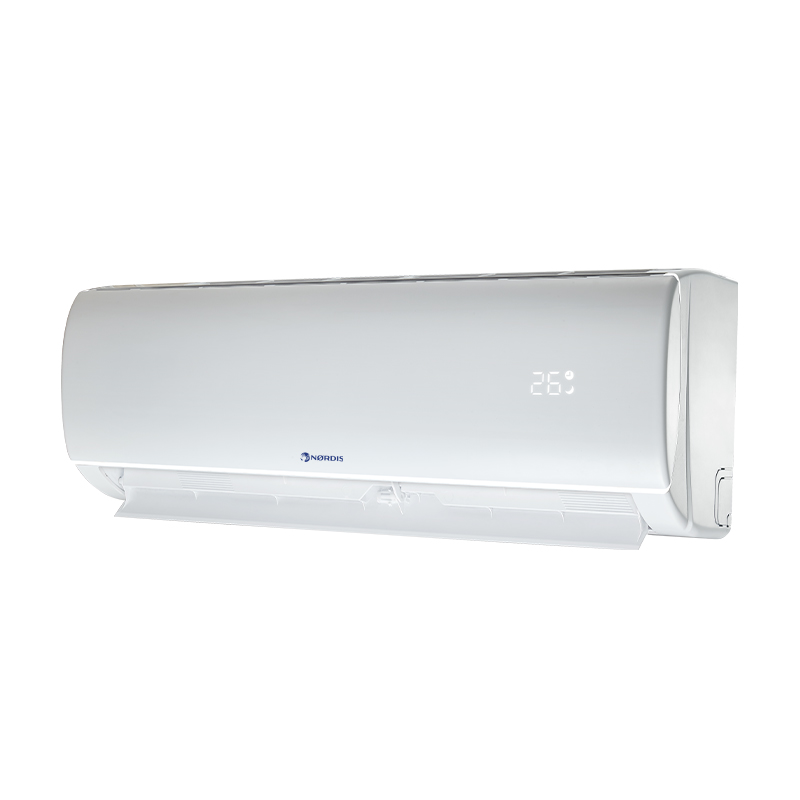

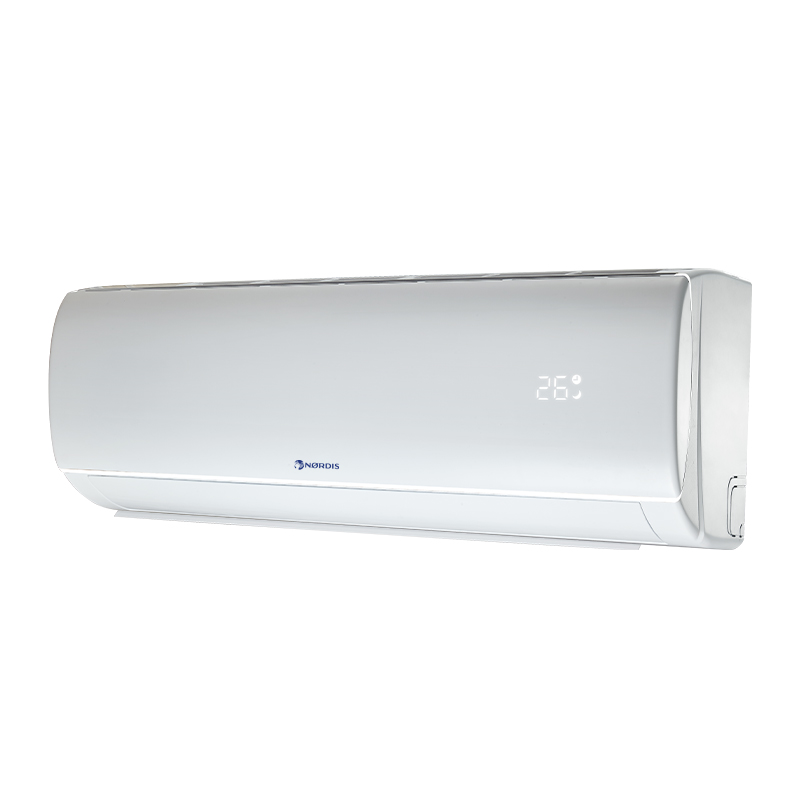

| Indoor Unit |
|
|
|
|
|
| Dimension (WxHxD) |
mm |
777×250×201 |
777×250×201 |
910×294×206 |
1010×315×220 |
| Dimension of Package (LxWxH) |
mm |
850x320x275 |
850×320×275 |
979×372×277 |
1096×390×297 |
| Weight netto |
kg |
8 |
8 |
10 |
13 |
| Weight brutto |
kg |
10,5 |
10,5 |
13 |
16 |
| Air Flow Volume |
m3/h |
550 |
550 |
800 |
980 |
| Sound Pressure Level 1m distance |
db(A) |
42/38/33/30/22 |
40/37/33/25/22 |
43/41/38/35/27 |
44/41/38/34/30 |
| Sound Power |
db(A) |
52/48/43/39/32 |
50/47/43/35/32 |
53/50/47/43/36 |
54/51/48/44/40 |

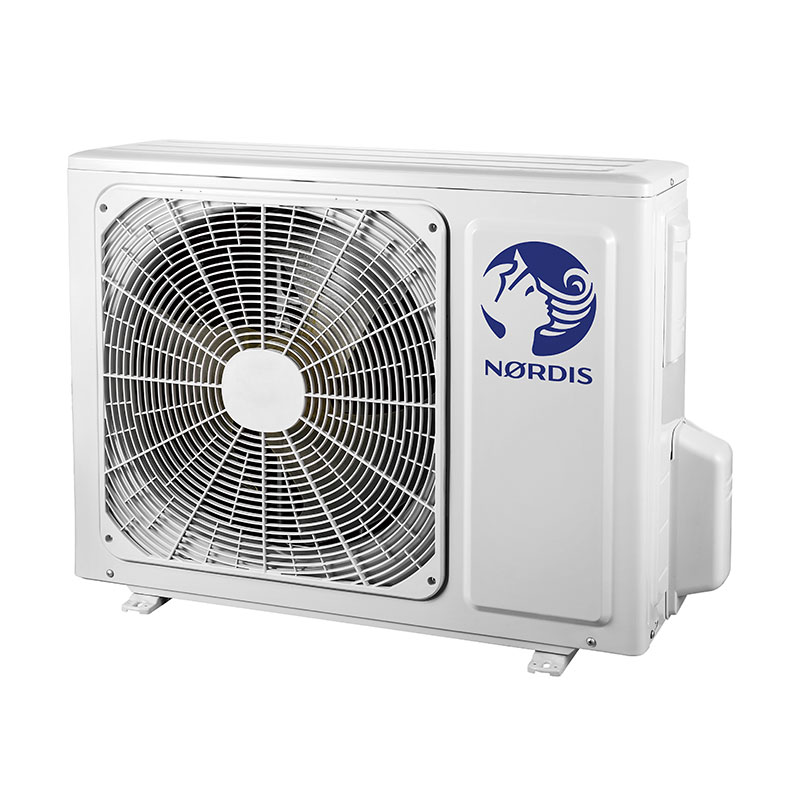

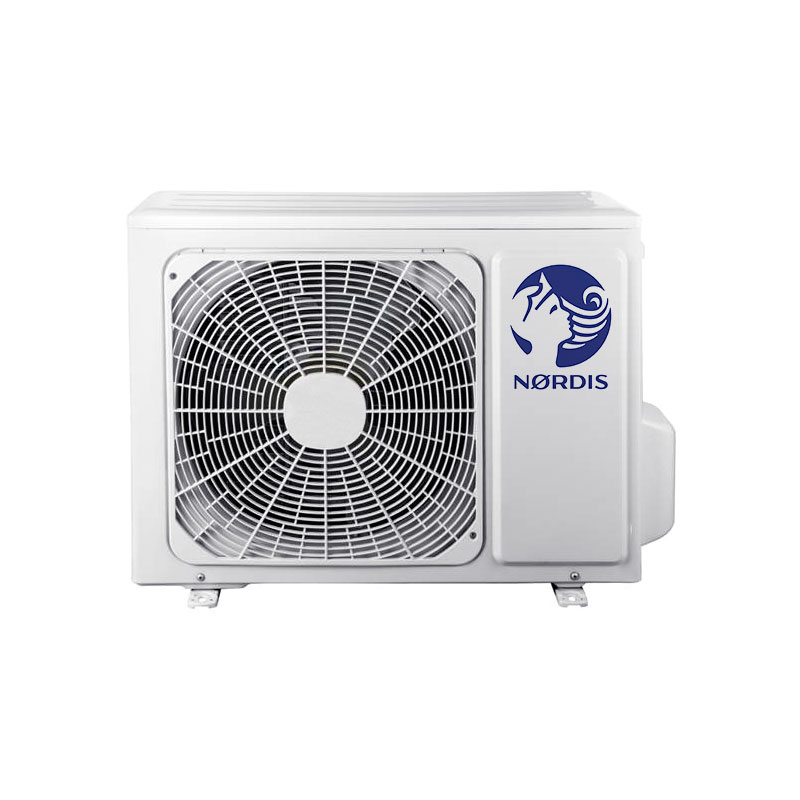

| Outdoor Unit |
|
|
|
|
|
| Dimension (WxHxD) |
mm |
777×498×290 |
777×498×290 |
853×602×349 |
920×699×380 |
| Dimension of Package (LxWxH) |
mm |
818×520×325 |
818×520×325 |
890×628×385 |
960×732×400 |
| Weight netto |
kg |
24 |
24 |
35 |
40 |
| Weight brutto |
kg |
27 |
27 |
39 |
46 |
| Air Flow Volume |
m3/h |
1250 |
1900 |
2600 |
3000 |
| Sound Pressure Level |
db(A) |
52 |
50 |
55 |
57 |
| Sound Power |
db(A) |
62 |
60 |
65 |
67 |
| Connection Pipe |
Refrigerant Pipe |
in/mm |
1/4”-3/8″/ (Ø6.35-Ø9.52) |
1/4”-3/8”/ (Ø6.35-Ø9.52) |
1/4”-3/8”/ (Ø6.35-Ø9.52) |
1/4”-1/2”/ (Ø6.35-Ø12.70) |
| Amount of Refrigerant R32 |
kg |
R32/0.57kg/675/0.385 t. |
R32/0.57kg/675/0.385 t. |
R32/1.0kg/675/0.675t. |
R32/1.14kg/675/0.770t. |
| Additional amount of Refrigerant |
g/m |
15 |
15 |
15 |
25 |
| Track length without additional Refrigerant |
m |
5 |
5 |
5 |
5 |
| Max. Distance Length |
m |
25 |
25 |
25 |
25 |
| Max. Elevation |
m |
10 |
10 |
10 |
10 |
| Power Cable |
Power Cable |
mm2 |
3×1.0 |
3×1.5 |
3×1.5 |
3×2.5 |
| Automatic Switch |
A |
10 |
16 |
16 |
20 |
| Communication Cable |
mm2 |
4×0.75mm² |
4×0.75mm² |
4×0.75mm² |
4×0.75mm² |
| Cooling Operation Ambient Temperature Range |
°C |
-15~53 |
-15~53 |
-68 |
-68 |
| Heating Operation Ambient Temperature Range |
°C |
-22~30 |
-22~30 |
-22~30 |
-22~30 |
